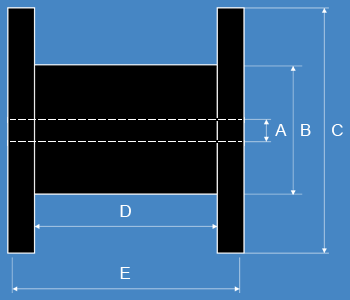

| SPOOL TYPE | A | B | C | D | E | WIRE DIAMETER RANGE | Max. WEIGHT | TARE WEIGHT |
|---|---|---|---|---|---|---|---|---|
 DIN 80 |
16mm | 50mm | 80mm | 64mm | 80mm | Up to 0.25mm | 0.800 Kg | 0.070 Kg |
| .630″ | 2.00″ | 3.15″ | 2.50″ | 3.15″ | Up to .010″ | 1.7 lb | 0.15 lb | |
 DIN 100 |
16mm | 64mm | 100mm | 80mm | 100mm | 0.19 – 0.4mm | 1.500 Kg | 0.125 Kg |
| .630″ | 2.50″ | 3.90″ | 3.15″ | 3.90″ | .0076″ – .016″ | 3.3 lb | 0.28 lb | |
 DIN 125 |
16mm | 80mm | 125mm | 100mm | 125mm | 0.19 – 0.55mm | 3 Kg | 0.170 Kg |
| .630″ | 3.15″ | 4.90″ | 3.90″ | 4.90″ | .0076″ – .022″ | 6.5 lb | 0.38 lb | |
 DIN 160 |
22mm | 100mm | 160mm | 128mm | 160mm | 0.25 – 0.71mm | 5 Kg | 0.350 Kg |
| .865″ | 3.90″ | 6.300″ | 5.040″ | 6.300″ | .010″ – .028″ | 11 lb | 0.77 lb | |
 DIN 200 |
36mm | 125mm | 200mm | 160mm | 200mm | 0.4 – 0.81mm | 10 Kg | 0.600 Kg |
| 1.400″ | 4.920″ | 7.875″ | 6.300″ | 7.875″ | .016″ – .032″ | 22 lb | 1.32 lb | |
 DIN 250 |
36mm | 160mm | 250mm | 160mm | 200mm | 0.4 – 1.5mm | 20 Kg | 1.050 Kg |
| 1.400″ | 6.300″ | 10.000″ | 6.300″ | 7.875″ | .016″ – .060″ | 44 lb | 2.32 lb | |
 DIN 355 |
36mm | 225mm | 355mm | 162mm | 200mm | 1.0 – 3.0mm | 40 Kg | 1.850 Kg |
| 1.400″ | 8.75″ | 14.000″ | 6.25″ | 8″ | .040″ – .118″ | 88 lb | 4.08 lb | |
 DIN 500 |
36mm | 316mm | 500mm | 180mm | 250mm | 1.2 – 3.0mm | 75 Kg | 7.650 Kg |
| 1.400″ | 12.440″ | 19.690″ | 7.090″ | 9.840″ | .047″ – .118″ | 165 lb | 16.87 lb | |
 SK 460 |
305mm | 318mm | 460mm | 91mm | 105mm | 0.25 – 1.8mm | 45 Kg | 1.850 Kg |
| 12.000″ | 12.520″ | 18.110″ | 3.580″ | 4.134″ | .010″ – .072″ | 95 lb | 4.08 lb | |
 SK 255 |
216mm | 222mm | 253mm | 30mm | 36mm | 0.25 – 1.0mm | 1 Kg | 0.170 Kg |
| 8.500″ | 8.740″ | 10.000″ | 1.200″ | 1.420″ | .010″ – .040″ | 2.20 lb | 0.38 lb | |
 Locking Reel |
16mm | 70mm | 102mm | 38mm | 45mm | 0.25 – 1.0mm | 0.500 Kg | 0.070 Kg |
| .630″ | 2.750″ | 4.000″ | 1.500″ | 1.770″ | .010″ – .040″ | 1.00 lb | 0.15 lb | |
 ¼ Cat |
16mm | 43mm | 63mm | 51mm | 60mm | Up to 0.25mm | 0.300 Kg | 0.050 kg |
| .630″ | 1.700″ | 2.500″ | 2.000″ | 2.360″ | Up to .010″ | 0.60 lb | 0.11 lb | |
 ½ Cat |
16mm | 43mm | 63mm | 76mm | 86mm | Up to 0.25mm | 0.500 Kg | 0.070 Kg |
| .630″ | 1.700″ | 2.500″ | 3.000″ | 3.390″ | Up to .010″ | 1.00 lb | 0.15 lb | |
 Argon / Mig |
52mm | 208mm | 300mm | 90mm | 102mm | 0.5 – 1.64mm | 12 Kg | 0.680 Kg |
| 2.050″ | 8.190″ | 11.810″ | 3.540″ | 4.020″ | .020″ – .064″ | 25 lb | 1.50 lb |
Each spool contains one continuous length of wire. In most cases, we can join the wire to give longer lengths, or split orders onto small weight spools (please enquire).
Each spool is PMI (Positive Material Identification) tested. Depending on the number of spools, tensile testing is carried out on each spool or to our sampling plan.
All spools are labelled and packed suitably for the chosen mode of transport, either in boxes or in crates.
